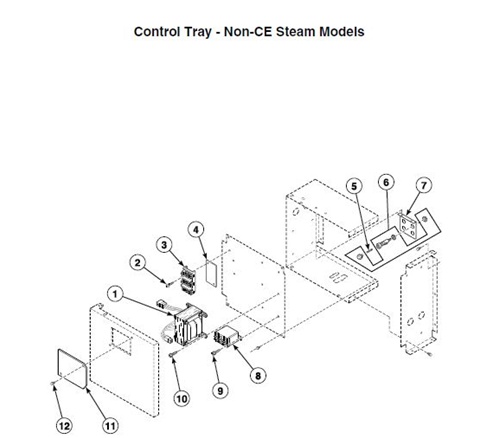

NA M413507 Jumper Configuration Assembly 230 Volt/50 Hertz/1 or 3 Phase; 230-240 Volt/50 Hertz/1 Phase; 240 Volt/60 Hertz/3 Phase and 200-208, 240 Volt/60 Hertz/ 3 Phase
NA M413510 Jumper Configuration Assembly 460-480 Volt/60 Hertz/3 Phase
NA M413504 Jumper Harness Assembly 100 Volt/50 or 60 Hertz/1 Phase
NA M413508 Jumper Harness Assembly 380 Volt
NA M413509 Jumper Harness Assembly 415 Volt
NA 70085001P Power Harness Assembly 1 Phase
NA 70111701 Power Harness Assembly 3 Phase
NA 70108801P Power Harness Upper to lower
NA 70113101 Steam Jumper Assembly
NA 70204601 Junction Box Harness Assembly
NA M413878 Capacitor Network Harness Assembly 3O, 3V, 3X control suffixes
1 M414312P Transformer 120 Volt/60 Hertz/1 Phase; 3O, 3V, 3X, BC, BL, BU, BX, BY, NC, NR, NX, NY, ZC, ZR, ZX and ZY control suffixes
1 M414230P Transformer 120 Volt/60 Hertz/1 Phase; All except 3O, 3V, 3X, BC, BL, BU, BX, BY, NC, NR, NX, NY, ZC, ZR, ZX and ZY control suffixes 1 M414228P Transformer 200-240 Volt/60 Hertz/3 Phase; 200-240 Volt/50
Hertz/1 or 3 Phase
1 M414229P Transformer 380-480 Volt/50 or 60 Hertz/3 Phase
2 M405824 Screw
3 430642 Terminal Block
4 M413862 Insulator
5 M413118 Fuse 2 Amp; 120 to 240 Volt
5 M413621 Fuse 0.5 Amp; 380 Volt and above
5 M414232 Fuse 3.5 Amp
5 M414240 Fuse 2 Amp; 100 Volt
6 91024P Fuse Receptacle
6 M413544P Fuse Holder 380 Volt and above
7 70086301 Fuse Bracket Low voltage
7 70086401 Fuse Bracket 380 Volt and above
8 70210901P Relay 1 Phase
8 M413614P Fan Contactor 3 Phase
9 51778 Screw For relay
9 51780 Screw For contactor
10 M411072 Screw
11 N/A Fuse Cover
12 51780 Screw
N/A = Part no longer available
|
|
|
|
