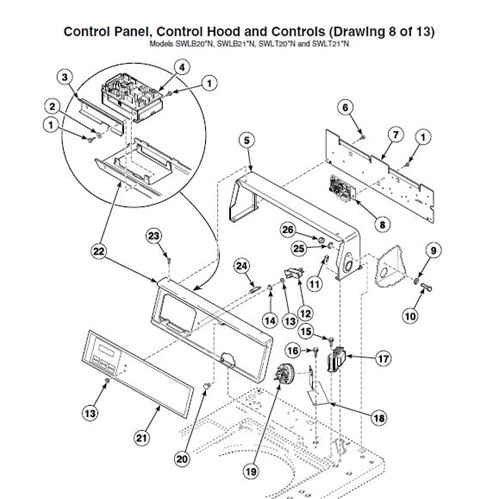

You are here:Home > TOPLOAD > Metered and Nonmetered > Control Panel, Control Hood and Controls (Drawing 8 of 13)
1 501524 Screw
2 200608 Washer
3 210053 Control Shield
4 200641P Control Kit Models SWLB20*N and SWLB21*N
4 202025P Control Assembly Models SWLT20*N and SWLT21*N
5 37075W Control Hood White
5 37075Q Control Hood Bisque
6 23222 Screw
7 38267 Hood Back Panel
8 201755P Control Assembly
9 M400017 Washer
10 02916 Screw
11 501086 Screw
12 55882 Switch Assembly
13 52947 Nut
14 25820 Washer
15 503661 Screw
16 23962 Screw
17 201375P Transformer
18 201789 Pressure Switch Bracket
19 201997P Pressure Switch
20 32648 Control Panel Bumper
20 M400795 Bumper Extra thick
21 201799 Control Panel Overlay Models SWLB20*N and SWLB21*N
21 201973 Control Panel Overlay Models SWLT20*N and SWLT21*N
22 201798W Control Panel Assembly White
22 201798Q Control Panel Assembly Bisque
23 52864 Screw Phillips head
23 35528 Screw Torx head
24 801431 Light
25 02431 Washer
26 52566 Nut
* Add Letter To Designate Color. L - Almond Q - Bisque W - White
